Home Products Professional Carpet Dust Removal & Washing Equipment (8-Brush Discs)

Automatic Carpet Cleaner with Integrated Dust Removal and 8-Brush Machine

Automatic Carpet Cleaner with Integrated Dust Removal and 8-Brush Machine

The APEX 5200 is an automatic 2-in-1 carpet dust-removal and washing machine featuring an integrated dust-extraction system, eight rotary brushes, and an automatic spraying unit. Its smart water-saving design cuts water usage by over 40%. OEM/ODM customization available for professional carpet-cleaning applications.

Maximum Cleaning Width :
5200 mm
Automatic Spray Nozzle Quantity :
10 Water + 10 Detergent Nozzles
Number of Brush Discs :
10 Pcs
Rated Power :
13 kW
Rated Voltage :
380–420 V
Net Weight :
4000 kg
Brush Diameter :
400 mm
Carpet Washing Speed :
1 m/min
Dimension :
6000 × 2200 × 1800 mm

Inquiry now

Automatic Carpet Cleaner with Integrated Dust Removal and 8-Brush Mechanism

Product Overview

The APEX 5200 is a high-capacity industrial automatic carpet and rug dust-removal and washing machine designed for large-scale cleaning facilities. With an extra-wide 5.2-meter cleaning width, it is the world’s first system to perform automatic dust extraction and deep washing in a single pass, reducing floor space usage and minimizing labor requirements.

Powered by an advanced 8+1 heavy-duty brush cleaning system and a smart water-saving design, the APEX 5200 delivers strong, uniform cleaning results while reducing water consumption by more than 40%. Engineered for all carpet types—from delicate area rugs to thick commercial carpets—it ensures consistent, precise, and high-efficiency cleaning performance for professional carpet washing plants and rug cleaning facilities.

Prodcut Features

Automatic Dust Removal System
Automatic dust removal and vacuuming can be done before washing for improved efficiency, and the system also functions independently

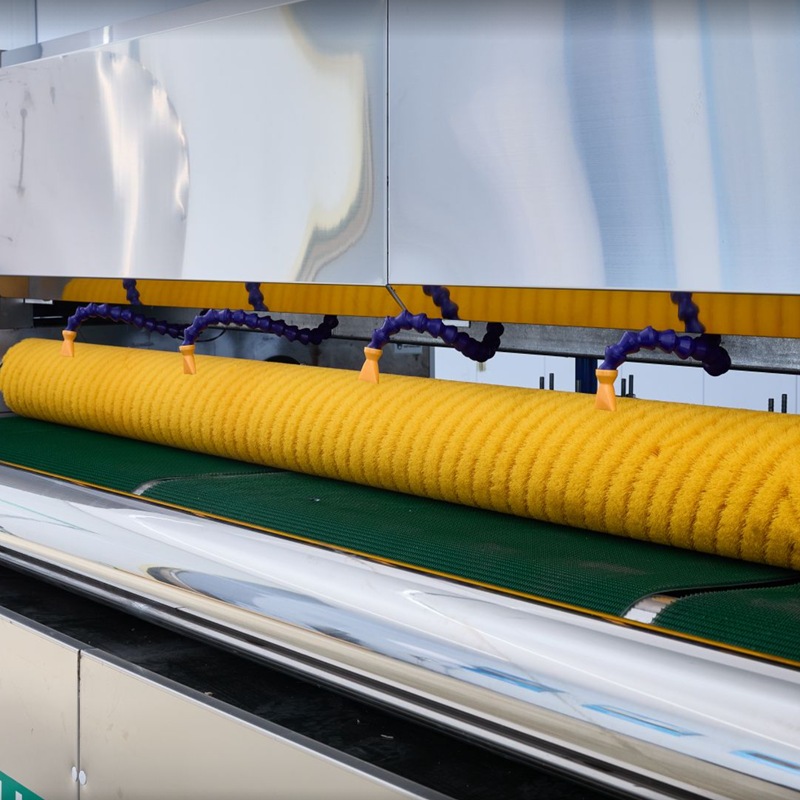

8 Brush Discs

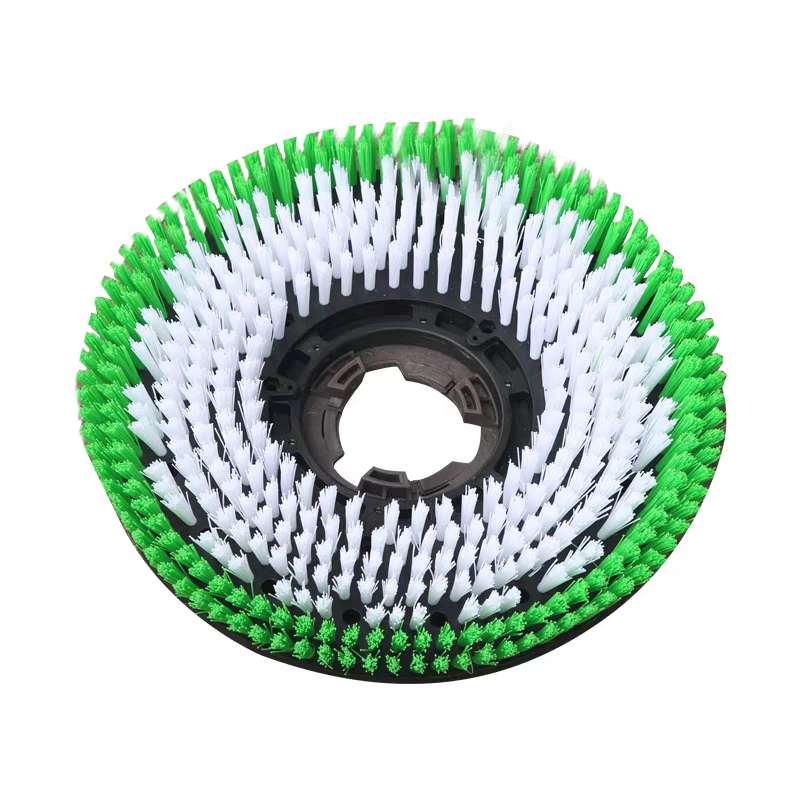

400 mm Stiff Nylon Brush Disc – Ideal for Deep Cleaning Both Standard and Heavily Soiled Carpets

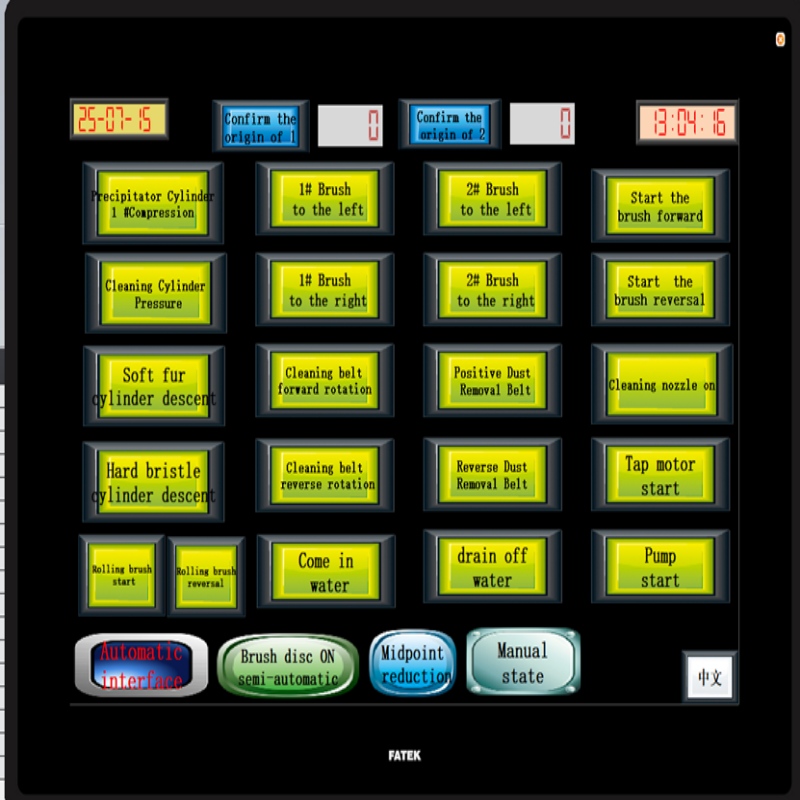

10-inch Multilingual Touch Panel
Supports customizable multi-language operation, and all functions are easily controlled with one-touch operation.

10+10 Automatic Sprinkling Nozzles
Equipped with automatic water and detergent spraying, the integrated detergent tank design helps cut water usage by more than 40%.
5 mm Thick Galvanized Steel Frame
Constructed with robust, long-lasting materials to deliver exceptional durability and an extended service life.
Advanced Electrical Control System
Featuring a state-of-the-art electrical control system for intelligent and reliable performance

Our Certificate

Application areas

1. Professional Rug Cleaning Plants

Save Factory Space: The 2-in-1 design combines dust removal and washing, replacing the need for two separate machines.

Boost Productivity: Built for continuous operation with a consistent 1 m/min cleaning speed.

2. Centralized Laundry Factories

Deep Cleaning Power: Heavy-duty 400 mm nylon brushes easily tackle embedded dirt in commercial mats.

Smart Efficiency: The Dual Automatic Spraying System ensures thorough cleaning coverage for large-scale tasks.

3. Home Carpet Washing & Dust Removal

Save Factory Space: The 2-in-1 design combines dust removal and washing, replacing the need for two separate machines.

Your Success, Our Export Mission

Our equipment serves as more than just machinery—it is a trusted business partner for professionals worldwide. From the challenging dusty environments of Central Asia to the heavy-duty demands of African industrial plants, our solutions deliver consistent, high-performance results every day. As our global footprint expands, we are proud to power businesses across Central Asia, South Asia, and Africa, with successful installations in Kazakhstan, Kyrgyzstan, Pakistan, Egypt, Kenya, Niger, South Africa, and many other regions.

Shipping & Packaging Options

We offer two professional packaging methods depending on your shipping needs:

Standard Wooden Crate: For maximum protection (especially for LCL shipments), the machine is fully enclosed in a sturdy, export-grade wooden case with a pallet base.
Film-Wrapped Container Loading: For Full Container Loads (FCL), the machine is wrapped in multi-layer protective film and securely loaded directly into the container to optimize space and stability.

1. How long is the warranty period for the machines?

Production can be completed within 7 days after the order is confirmed. For larger order quantities, the lead time will be extended accordingly.

2. How often do machines need maintenance?

Maintenance is simple: just lubricate the transmission system once every 6 months. Nothing else is required, and we supply step-by-step video support for your convenience.

3. Is there training available for operating the machine?

We offer multi-language versions of the operation panel, along with installation and operation tutorial videos. On-site installation and training can also be provided upon request.

4. What technical support is included after installation?

We provide 24/7 after-sales support and respond promptly to any machine-related inquiries.

5. Are installation services provided with the purchase?

This machine is user-friendly and easy to operate. We normally provide detailed installation videos, and for your convenience, on-site installation service can be arranged upon request.

6. How long is the expected lifespan of the machine?

The machine is made from high-quality materials. Apart from replaceable parts, it is designed for a service life of 20 years

7. Do you offer OEM or ODM services for this machine?

Yes, we offer ODM/OEM production and can customize equipment to meet your specific requirements.

8. Are spare parts such as brushes and rollers easy to replace and purchase?

Yes, our brush discs are very easy to replace, and we also provide an extra set free of charge. The roller brush system is designed for long-lasting use

9. What type of power supply and water/drain connections are required?

Compatible with three-phase 380V–420V industrial power and easily connects to a standard water supply
