Industrial Automatic Deep-Clean Carpet & Rug Washing System TITAN-4200

Industrial Automatic Deep-Clean Carpet & Rug Washing System TITAN-4200

The TITAN-4200 is a fully automatic 10-brush deep-clean carpet dust-removal and washing machine, designed for high-performance commercial and industrial cleaning. Its powerful system delivers excellent results even on heavily soiled carpets, while remaining safe for Persian carpets, silk carpets, prayer rugs, commercial mats, synthetic carpets, and delicate area rugs without causing fiber damage.Supporting multiple operating languages and full OEM/ODM customization.

Maximum Cleaning Width :
4200 mm
Automatic Spray Nozzle Quantity :
9 Water + 9 Detergent Nozzles
Number of Brush Discs :
10 Pcs
Rated Power :
12 kW
Rated Voltage :
380–420 V
Net Weight :
3500 kg
Brush Diameter :
400 mm
Carpet Washing Speed :
1 m/min
Dimension :
5000 × 2200 × 1800 mm

Inquiry now

Industrial Automatic Deep-Clean Carpet & Rug Washing System TITAN-4200

Product Overview

The TITAN-4200 is a fully automatic carpet dust-removal and deep-cleaning machine featuring a 10-brush system that delivers outstanding results on heavily soiled carpets. Its adjustable brush design prevents fiber damage and overcomes the limitations of traditional single-mode cleaning.

Each brush disc is powered by an independent brushless motor, ensuring safe, precise, and reliable operation. Ideal for large home-cleaning service companies, the TITAN-4200 provides strong cleaning performance with fully automated efficiency.

Prodcut Features

Automatic Dust Removal System
Performs dust removal and vacuuming before washing to boost cleaning efficiency. The system can also operate independently for quick pre-cleaning or light-maintenance tasks.

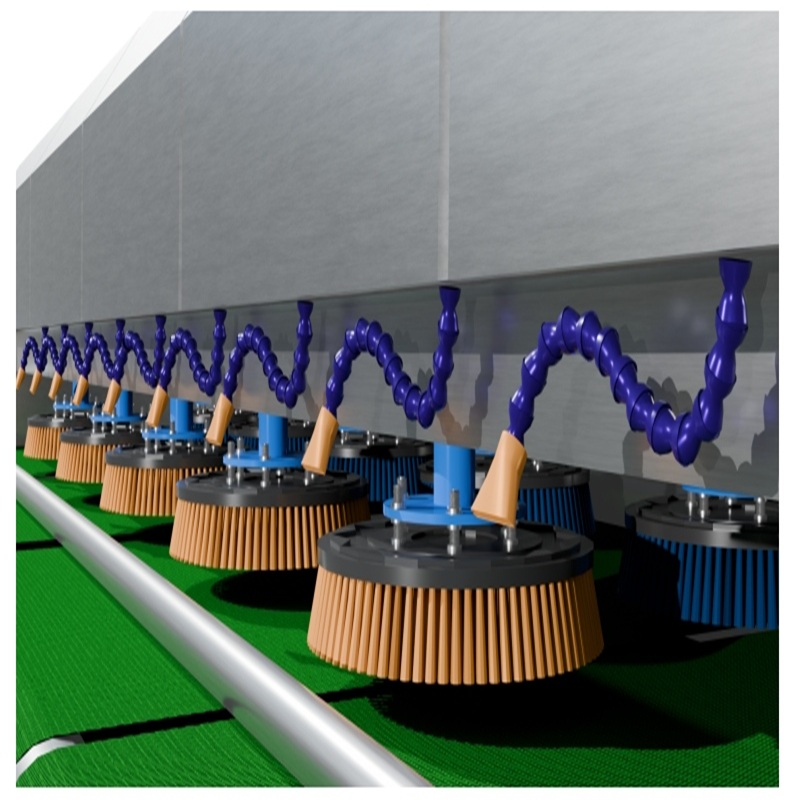

Adjustable 10-Brush Cleaning System
A combination of five 400 mm hard brushes and five soft brushes—each running independently—ensures deep cleaning while protecting different carpet fibers.
Integrated Detergent Tank Design
With its embedded design, the tank requires no separate placement, saving valuable space, while the recirculating system maximizes energy efficiency

9+9 Automatic Sprinkling Nozzles
Automatic water and detergent spraying, combined with an integrated tank design, delivers more than 40% reduction in water usage.

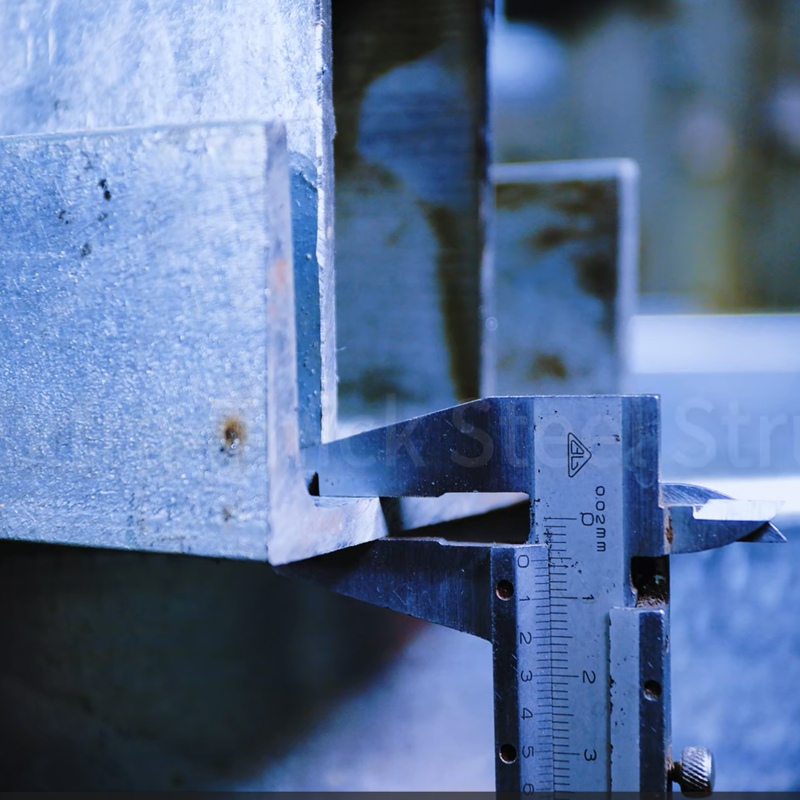

5 mm Thick Galvanized Steel Frame
Constructed with robust, long-lasting materials to deliver exceptional durability and an extended service life.
Loose-Fiber Removal & Auto-Rolling
Removes surface lint and loose fibers, then auto-rolls the carpet to speed up drying, transport, and packing.

Our Certificate

Application areas

1.Commercial Cleaning Contractors

Powerful Deep-Cleaning Performance:10-brush system delivers exceptional results on even heavily soiled carpets.

High-Efficiency Performance: Industrial-grade control systems and robust mechanical structure ensure stable, reliable cleaning quality with minimal downtime.

2. Hotels, Resorts & Large Facilities

One-Pass Dust Extraction & Washing System: Performs dust removal and deep washing in one synchronized pass, reducing manual handling and optimizing production flow.

4.2-Meter Industrial Cleaning Width: Accommodates extra-large carpets and continuous cleaning tasks, enhancing throughput for industrial facilities.

Your Success, Our Export Mission

Our equipment is more than just machinery—it is a reliable business partner for professional carpet cleaning operations worldwide. Engineered for tough conditions, it performs consistently in the dust-heavy environments of Central Asia and the heavy-duty industrial plants across Africa, delivering stable, high-efficiency results every day.

With a rapidly growing global presence, our carpet-cleaning systems are trusted across Central Asia, South Asia, and Africa, with successful installations in Kazakhstan, Kyrgyzstan, Pakistan, Egypt, Kenya, Niger, South Africa, and many other regions. As our international footprint expands, we continue to support businesses with durable, high-performance carpet washing and dust-removal solutions built for diverse commercial demands.

Shipping & Packaging Options

We offer two professional packaging methods depending on your shipping needs:

Standard Wooden Crate: For maximum protection (especially for LCL shipments), the machine is fully enclosed in a sturdy, export-grade wooden case with a pallet base.
Film-Wrapped Container Loading: For Full Container Loads (FCL), the machine is wrapped in multi-layer protective film and securely loaded directly into the container to optimize space and stability.

1. How long is the warranty period for the machines?

Production can be completed within 7 days after the order is confirmed. For larger order quantities, the lead time will be extended accordingly.

2. How often do machines need maintenance?

Maintenance is simple: just lubricate the transmission system once every 6 months. Nothing else is required, and we supply step-by-step video support for your convenience.

3. Is there training available for operating the machine?

We offer multi-language versions of the operation panel, along with installation and operation tutorial videos. On-site installation and training can also be provided upon request.

4. What technical support is included after installation?

We provide 24/7 after-sales support and respond promptly to any machine-related inquiries.

5. Are installation services provided with the purchase?

This machine is user-friendly and easy to operate. We normally provide detailed installation videos, and for your convenience, on-site installation service can be arranged upon request.

6. How long is the expected lifespan of the machine?

The machine is made from high-quality materials. Apart from replaceable parts, it is designed for a service life of 20 years.

7. Do you offer OEM or ODM services for this machine?

Yes, we offer ODM/OEM production and can customize equipment to meet your specific requirements.

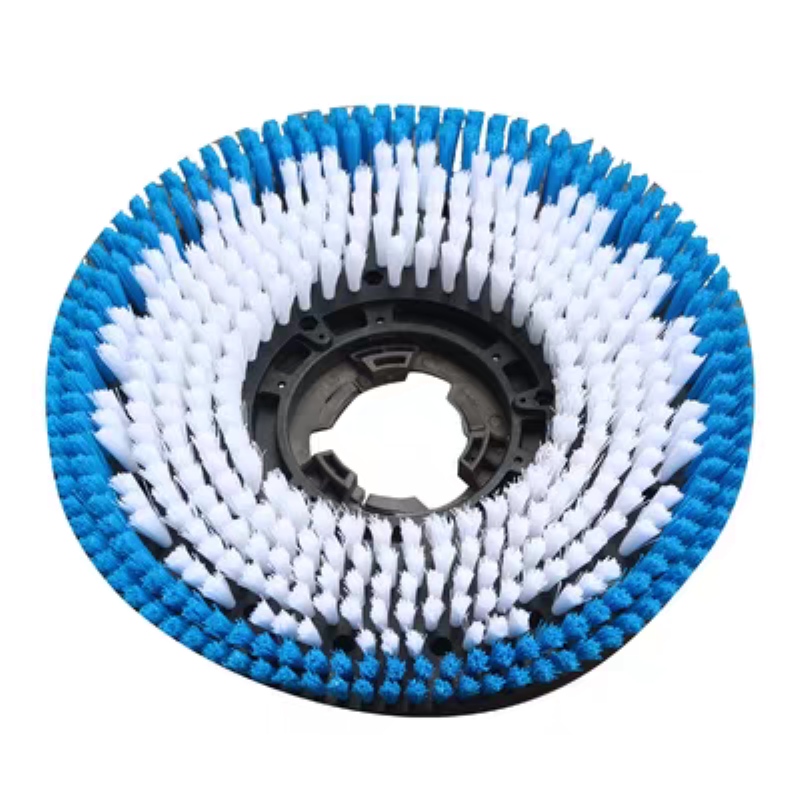

8. Are spare parts such as brushes and rollers easy to replace and purchase?

Yes, our brush discs are very easy to replace, and we also provide an extra set free of charge. The roller brush system is designed for long-lasting use.

9. What type of power supply and water/drain connections are required?

Compatible with three-phase 380V–420V industrial power and easily connects to a standard water supply.
